TECHNICAL SPECIFICATIONS

Operating Frequency:60 MHz (1.4 T)
Magnet:Permanent, no cryogens

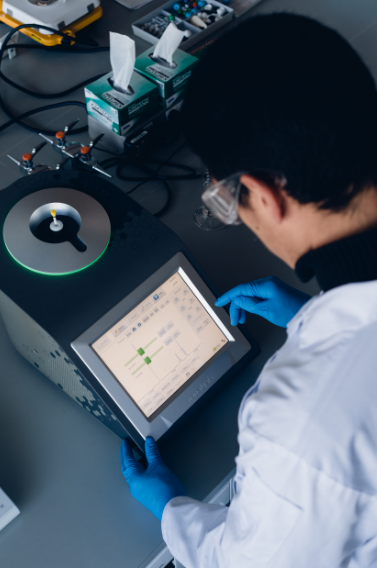

User Interface:Built-in Touchscreen or Windows, Mac or Linux compatible
Nuclei:1H, 19F
Lock:Deuterium with non-deuterium options
Sample:Standard 5mm NMR tubes or flow options
Output File Compatibility: JCAMP-DX, Mestrelab MNova, Bruker TopSpin, ACD/Labs, JEOL Delta, Spinworks    more details
Monitoring Software Compatibility: LabVIEW (via NMReadyCONNECT API), Mestrelab MNova SMA
Resolution:FWHM ≤ 1.0 Hz (20 ppb)
Sensitivity (SNR):100:1 (1% EtBz single scan)
Stray Field:2 Gauss line contained within enclosure
Operating Temp:18-26°C
Power:100-240 VAC, 50-60 Hz
Dimensions:11.8" x 11.0" x 19.2" (30 x 28 x 49 cm)
Weight:55 lbs (25 kg)

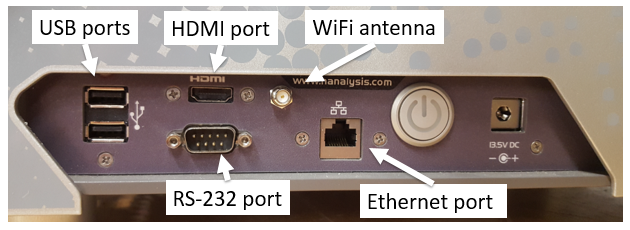

Networking:Ethernet, Wi-Fi
Specifications subject to change without notice
