The top-of-the-line benchtop NMR

Nanalysis-100
Benchtop NMR Spectrometer

The highest field available.
Easy-to-use and low maintenance.

Request a Quote

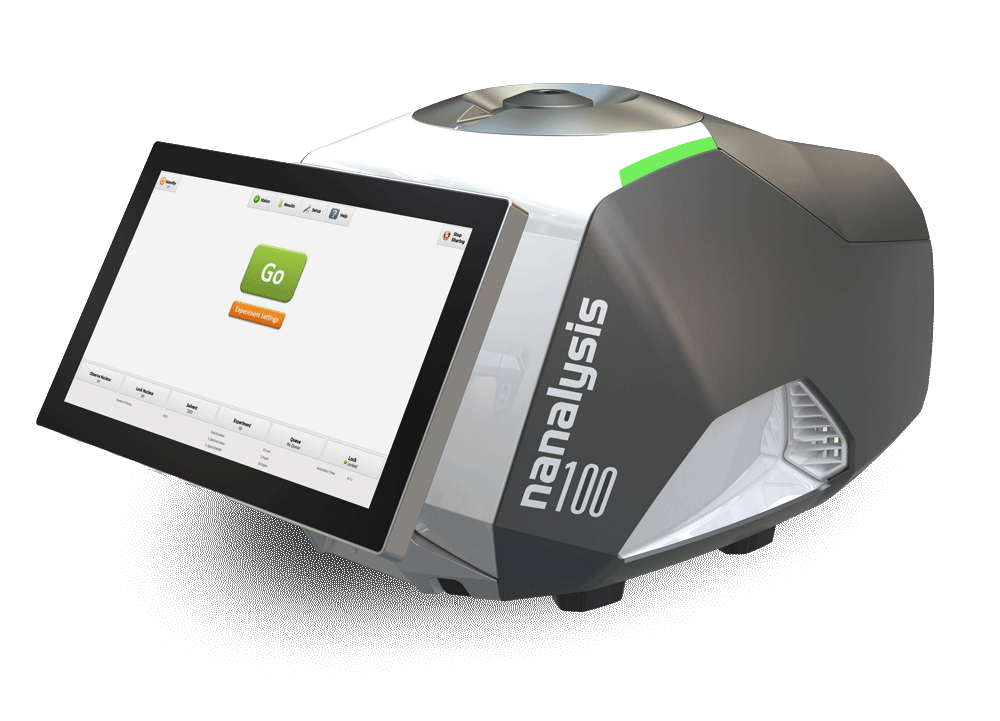

Laboratory instrument with a screen displaying a green 'Go' button and text reading 'Nan analysis 100'

  • Nanalysis-100 benchtop NMR

    Nuclei:
    1H/19F, 1H/19F/13C, 1H/19F/7Li, 1H/19F/31P, etc.

    Please inquire about custom options.
    Request a quote >

    Operating Frequency
    100 MHz (2.35 T)

    Resolution, LW (50%), LW (0.55%)
    < 0.5 Hz (< 0.005 ppm)
    < 10 Hz (< 0.10 ppm)

    Sensitivity, 1% Ethylbenzene, 1 scan
    > 250:1 single channel
    > 220:1 dual channel

    Dimensions with screen (w x h x d)
    17 x 15.25 x 32”
    43.2 x 38.74 x 81.28 cm

    Screen size and resolution
    15.6”, 16:9, 1920 x 1080

    Weight
    243 lbs /110 kg

    Magnet
    Permanent, no cryogens

    User Interface
    Built-in touchscreen and optional remote access. Connectable to external computer if desired.

    Lock
    Internal 1H and 2H options

    Sample
    Standard 5 mm NMR tubes, optional flow cell

    Compatibility
    File: JCAMP-DX, and CSV
    Software: Mnova, ACD/Labs, Delta, TopSpin, MATLAB, Spinit, NMRFx, etc.

    Stray Field
    < 2 Gauss line outside the enclosure

    Operating Temperature
    18 – 26 °C

    Power Supply
    100 – 240 VAC, 50 – 60 Hz

    Connectivity
    Ethernet/WiFi, USB, Serial, HDMI



  • Nanalysis is excited to offer access to gradient-based pulse sequences to enhance your 2D NMR analysis and solvent suppression routines!

    It includes sequences such as WET, 1D-CPMG-filter-WET, gCOSY, gTOCSY, gHSQC, gHSQC-ME, gHMQC, gHMBC

    To learn more about it, check out our gradient blog, the gradient video, and do not hesitate to inquire for more information.

    • Default Experiments Library: 1D, T1, T2, COSY, TOCSY, JRES, HSQC, HSQC-ME, HMBC, DEPT, APT, HETCOR

    • Gradient-based experiments Library: WET, 1D-CPMG-filter, 1D-CPMG-filter-WET, gCOSY, gTOCSY, gHSQC, gHSQC-ME, gHMQC, gHMBC

    • Extended library: NOESY, ROESY, 1D-CPMG-filter

    • Kinetics

    Please inquire about additional pulse sequences or experiment designer.

  • AUTOsample-100 – This top mounting autosampler is compatible with the 100 MHz benchtop NMR spectrometer. Easy mounting, quick interconversion between autosampler and manual modes, without requiring additional space on the bench. It comes with 2 carousels with 25 tubes per carousel. Set-up is simple with our onboard queueing software that allows the user to assign experiments to each tube and allow them to run automatically.

    Flow Kit – This flow cell kit turns the instrument into an online NMR detector. It allows easy inter-conversion of the Nanalysis-100 benchtop spectrometer into an NMR online detector either as a stand-alone tool or in conjunction with other analytical techniques.

  • See software package>

    • User Authentication – Ability to create authorized user profiles with unique permission levels

    • NMReady-CONNECT – An application programmatic interface (API) designed to allow users to remotely control and monitor Nanalysis Benchtop NMR

    • Experiment Designer – Advanced module allowing expert users to design and/or modify their own NMR pulse sequences

    • Queuing– Allows users to set up multiple experiments and acquire them in succession

    • Kinetics– Allows users to run scheduled 1D NMR experiments over a set period of time, such as the course of a chemical reaction

    • Installation Qualification/Operational Qualification (IQ/OQ)– Allow the qualification of Nanalysis benchtop NMR at the customer site at desired intervals, including immediately after installation, after moving the instrument or overtime to ensure that the instrument is performing to specification and to help with regulatory and GxP compliance

    • Remote Access– For those that want to control their spectrometer externally from a PC, phone, tablet, etc.

    • Gradient-based Experiment Library – A set of gradient-based experiments to speed up your 2D NMR analysis and improve your solvent suppression routine

    • qNMR Software Module – A new automated, easy-to-use software module to allow you to create and edit method to automate routine qNMR assays and allow technicians to collect data effortlessly.

    • Extended Experiment Library– A set of additional experiments available in addition to the default 1D and 2D NMR experiments available on Nanalysis Benchtop NMR

    • Solvent Suppression – A set of experiments to suppress strong signals before the data acquisition. It allows the user to optimize suppression for a specific sample

Brochure >

Explore Sample Spectra >

Demo Video >

Scientists working in a laboratory with advanced testing equipment, wearing lab coats, face masks, and protective eyewear.

100 MHz Accessories

Automated laboratory robot with a touchscreen interface displaying a green 'Go' button for experiment automation.

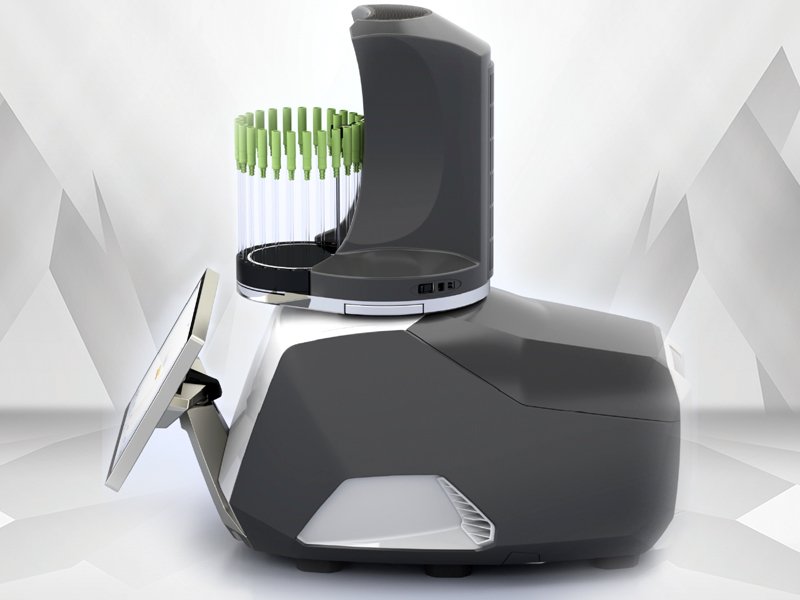

AUTOsample-100

This top mounting autosampler is compatible with the 100 MHz benchtop NMR spectrometer. Easy mounting, quick interconversion between autosampler and manual modes, without requiring additional space on the bench. It comes with 2 carousels with 25 tubes per carousel. Set-up is simple with our onboard queueing software that allows the user to assign experiments to each tube and allow them to run automatically.

  • The AUTOsample-100 allows users to:

    • Maximize efficiency by improving throughput during or after work hours

    • Run a series of 1D experiments or set up basic structural elucidation routines (e.g., 1H, COSY, HMBC, HSQC, DEPT-135, 13C{1H} etc.)

    • Acquire and save data automatically

Watch Demo Video >

Request a Quote
Automated blood testing device with multiple sample containers and a touchscreen interface

Back to top >

A scientist wearing gloves arranging plant samples in test tubes on a metal rack, with a periodic table of elements in the background.
A benchtop NMR spectrometer with the model name "Nanalysis-60" with the Flow Kit accessory on the table with large window.

Simple Reaction Monitoring

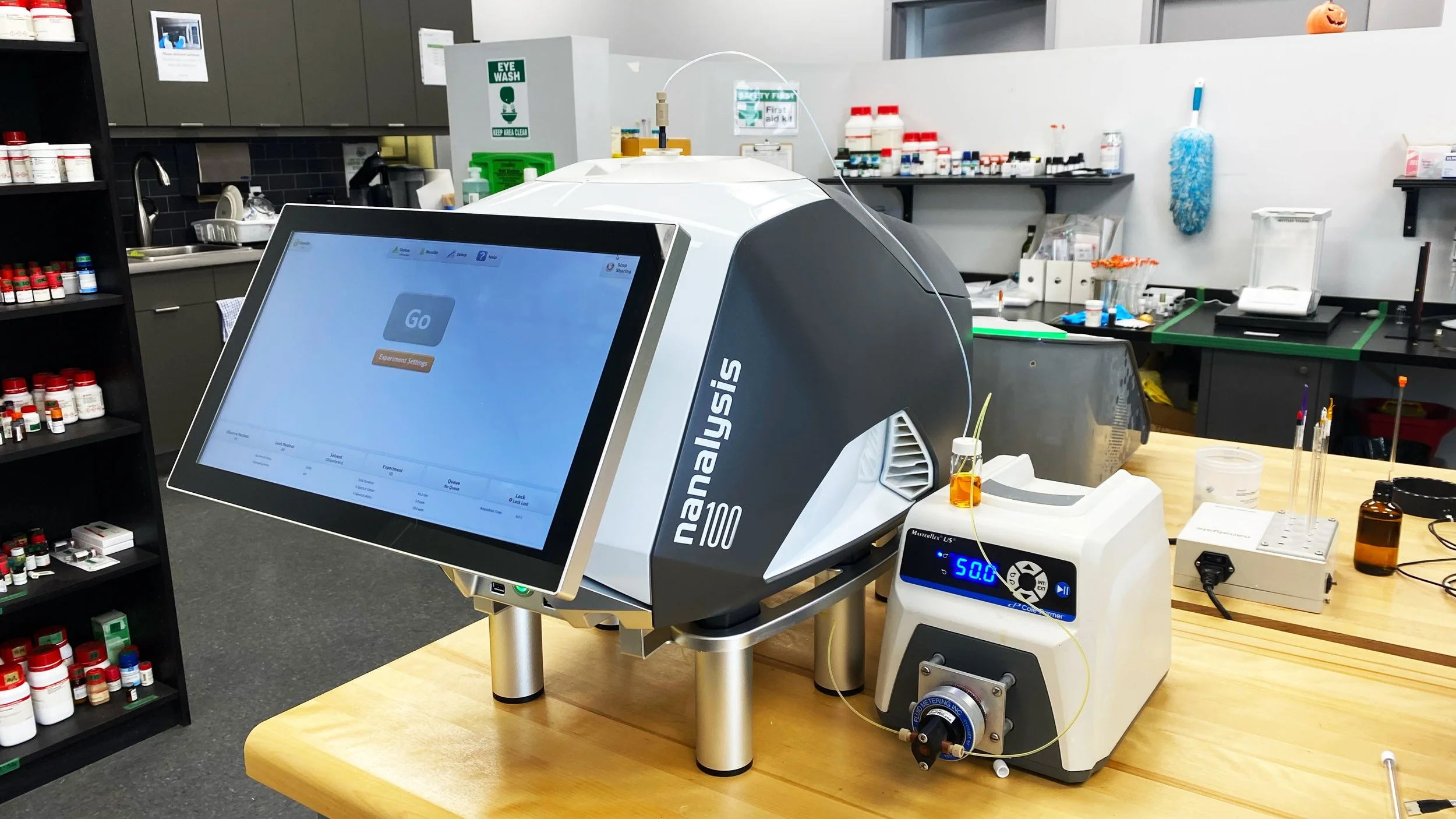

Flow Kit

This flow kit turns the instrument into an online NMR detector. It allows easy inter-conversion of the Nanalysis-100 benchtop spectrometer into an NMR online detector either as a stand-alone tool or in conjunction with other analytical techniques.

The flow kit allows users to:

  • Understand and optimize chemical reactions in real time

  • Automate repeated syntheses

  • Integrate the Nanalysis-100 into a laboratory system

  • Easy-to-install NMR Flow-through cell can be sealed from environment

  • Experiments can be initiated on-board, via NMReady-CONNECT or 3rd party software

Resources

Blog - In Situ Chemistry: Introducing Our New Nanalysis-100 Flow Cell

Sample Experiment - Real-Time 100 MHz Benchtop NMR Monitoring of the Wittig Reaction: Influence of Aldehyde Activity on Rate and Stereoselectivity
