Optional Onboard Software Modules

NEW

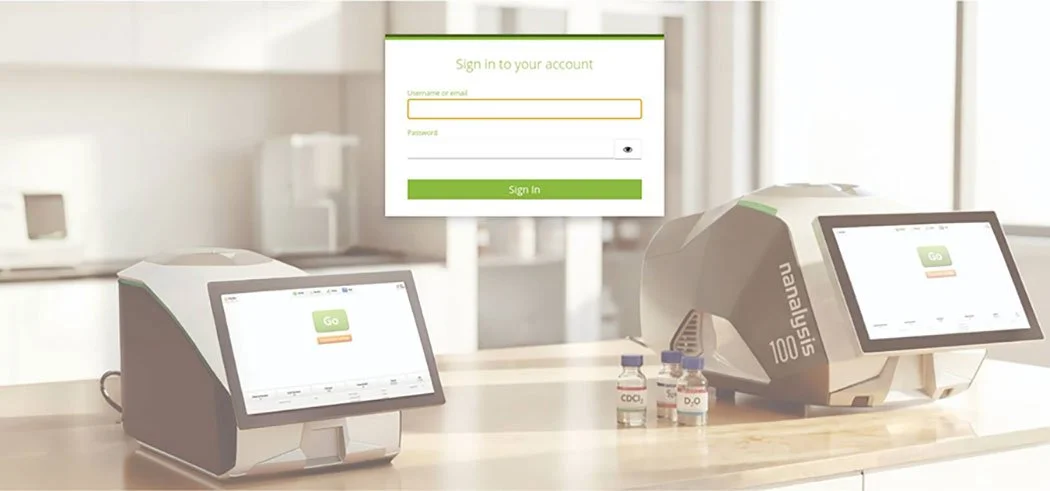

User Authentication Package

Ability to create authorized user profiles with unique permission levels.

  • The User Authentication package includes three main features:

    1. User Authentication and Access Control – Access to the Nanalysis onboard software is restricted to authorized personnel only. Each user must log in with a unique username and password, and will be assigned specific roles and permissions that determine their level of access to features within the system.

    2. Session Logs – The system compiles a history of all user login and logout activities.

    3. Database Storage – All data will be stored in a database. Customers will also have the ability to back up this data either to a USB drive or to a designated server.

Talk to our NMR experts

Optional Software Packages

NMReady-CONNECT

An application programmatic interface (API) designed to allow users to remotely control and monitor Nanalysis benchtop NMR.

  • Customers can programmatically interact with Nanalysis’ benchtop NMR spectrometers via an open application programmatic interface (API). There are currently two ways to communicate with a spectrometer: JSON (60Teach) and gRPC (Nanalysis-60 and Nanalysis-100).

    The NMReady-CONNECT provides the capability to:

    • Setup, launch and monitor experiments

    • Retrieve results in JCAMP-DX format

    • Monitor spectrometer performance

    • Manage auto-shimming and maintenance routines

    NMReady-CONNECT allows users to:

    • Integrate Nanalysis Benchtop NMR in your process workflow

    • Create customized teaching tools

    • Setup reaction monitoring with our Nanalysis-100 and Nanalysis-60 flow kit

    • Create custom red light/green light QA/QC inquires

Kinetics

Allows users to run scheduled 1D NMR experiments over a set period of time, such as the course of a chemical reaction.

Solvent Suppression

A set of experiments to suppress strong signals before the data acquisition. It allows the user to optimize suppression for a specific sample

Additional Third-party Software Packages

The Nanalysis Edition of Wiley’s KnowItAll

The Nanalysis Edition of Wiley’s KnowItAll is a customized version of the software designed exclusively for Nanalysis customers. It includes the Nanalysis NMR database pre-integrated with the software, providing users with immediate access to reference spectra optimized for benchtop NMR instruments operating at 60 MHz and 100 MHz field strengths.

  • The Nanalysis benchtop NMR, combined with the Nanalysis Edition of KnowItAll (an add-on software developed with Wiley exclusively for Nanalysis customers), provides precise and reliable identification while reducing operational complexity.

    ✅ Non-destructive analysis
    ✅ Pre-loaded database
    ✅ No specialized NMR expertise required

    >View Case Study

    >Contact Sales

Experiment Designer

Advanced module allowing expert users to design and/or modify their own NMR pulse sequences.

  • Every instrument comes standard with basic NMR pulse sequences depending on the model that is purchased (e.g., 1D, COSY, HSQC). For expert users who want to modify pulse sequences or generate their own, we offer the experiment designer feature.

    Customize:

    • Number of pulses on up to two channels simultaneously

    • Delays in the sequence

    • Phase cycling

    It uses the graphical interface for pulse sequence coding.

    »Watch video

    Please contact for more information.

Installation Qualification/ Operational Qualification (IQ/OQ)

Allows for the qualification of Nanalysis benchtop NMR instruments at the customer's site at desired intervals, including immediately after installation, after moving the instrument, or over time to ensure that the instrument is performing to specification and to help with regulatory and GxP compliance.

  • Adherence to regulatory compliance is critical in many workplaces. This optional software module is compatible with any Nanalysis’ benchtop NMR spectrometer and allows simple one-touch acquisition of Installation or Operational Qualification protocols.

    • Simple to use, fully automated

    • Assurance and validation in instrument performance

    • Checklist report

    >Download Installation Qualification/Operational Qualification (IQ/OQ) info sheet

Gradient-based
Experiment Library

A set of gradient-based experiments to speed up your 2D NMR analysis and improve your solvent suppression routine

Queuing

  • For users that want to run a series of experiments for structural elucidation purposes or run a series of 1D, such as replicates, for statistics applications.

    Queuing associated with AUTOsample-60 or 100 can increase productivity, allowing the setup and acquisition of multiple experiments using multiple NMR tubes automatically.

Allows users to set up multiple experiments and acquire them in succession.

Remote Access

For those that want to control their spectrometer externally from a PC, phone, tablet, etc.

Extended
Experiment Library

A set additional experiments available in addition to the default 1D and 2D NMR experiments available on Nanalysis Benchtop NMR

NMRFx logo with blue and black text

NMRFx - Processing, visualization, analysis and structure calculation of the NMR data.

Logo for 'Spin It' featuring a stylized letter 'S' with a red arrow going through it and the words 'spin it' below, with 'spin' in bold black and 'it' in gray.

spinit By RS2D - is a powerful NMR software incorporated in the background of our 100 MHz benchtop family, to facilitate data acquisition.  It contains the SequenceDevelopment plugin used by our experiment designer feature, inquire for more information.

qNMR Software Module

An automated, easy-to-use software module allowing you to create and edit method to automate routine qNMR assays and allowing technicians to collect data effortlessly.

  • The qNMR module has its own dedicated tab to create, edit and/or manage qNMR methods.  The administrator can set up acquisition parameters, integral ranges, etc. and name the method something that is easily identified, to allow any user to recall the method and run it as specified.  To personalize the method to the analysis, the analyst can include their name, the calibrant weight and purity, and the sample name and/or batch identifier so that they can be easily reviewed and identified when the results are audited.

    Once a qNMR method is developed and saved it can be used in routine qNMR evaluation.

    *Compatible with the Nanalysis-100 and Nanalysis-60 only.

    A typical qNMR module workflow includes the following steps:

    1. Develop and save the qNMR method

    2. Load the desired qNMR method

    3. Set sample and analyst details

    4. Acquire the data

    5. Get the purity results

  • >> qNMR demo video
